Product Overview
The yuwell 7E-H1 Portable Phlegm Suction Unit is designed to deliver adjustable high-vacuum, high-flow suction for the removal of fluids and secretions in appropriate healthcare and supervised care settings. Its AC-powered design provides straightforward operation where a suitable mains supply is available.
With an oil-free pump, front-mounted vacuum gauge, overflow protection and a 1,000 mL collection jar, the 7E-H1 combines reliable performance with practical everyday maintenance. An optional suction liner system may be used to support hygienic fluid management.
Key Benefits
• High-Flow Suction Performance: Provides a nominal maximum airflow of 28 ± 4 L/min measured at the device inlet.
• Adjustable Negative Pressure: A convenient control dial allows the suction setting to be adjusted for the required care procedure.
• Stable AC Operation: Designed for use with a suitable mains power supply; there is no built-in rechargeable battery.
• Oil-Free Pump: Operates without routine pump lubrication, simplifying routine equipment care.
• Overflow Protection: A protective valve helps reduce the risk of liquid overflow affecting the suction system.
• Suction Liner Compatibility: Supports an optional compatible liner system for practical fluid handling and disposal.
• Clear Vacuum Indication: An easy-to-read pressure gauge assists with setting and monitoring negative pressure.
• Intermittent Duty Cycle: Designed for 30 minutes ON followed by 30 minutes OFF.
Quality & Compliance
The yuwell 7E-H1 combines high-flow suction capability with an oil-free pump, negative-pressure adjustment and collection-jar overflow protection. Operate and maintain the unit in accordance with the Australian-supplied instructions. Suctioning should only be carried out by appropriately trained personnel or carers under suitable clinical guidance.
Intended Use
The 7E-H1 is intended to provide adjustable negative pressure when used with compatible suction tubing and catheters to remove fluids and secretions where suction is clinically indicated. It is suitable for healthcare and appropriately supervised care settings. It is not intended for continuous, unattended suction or life-sustaining use.
Warranty & After-Sales Support
2-Year Warranty on the Suction Unit Main Device.
Local technical assistance, servicing enquiries and replacement-part support are available. Warranty coverage for the rechargeable battery (where fitted), accessories and consumables may differ under the applicable terms.
Warranty terms and conditions apply. This warranty is provided in addition to your rights under Australian Consumer Law.

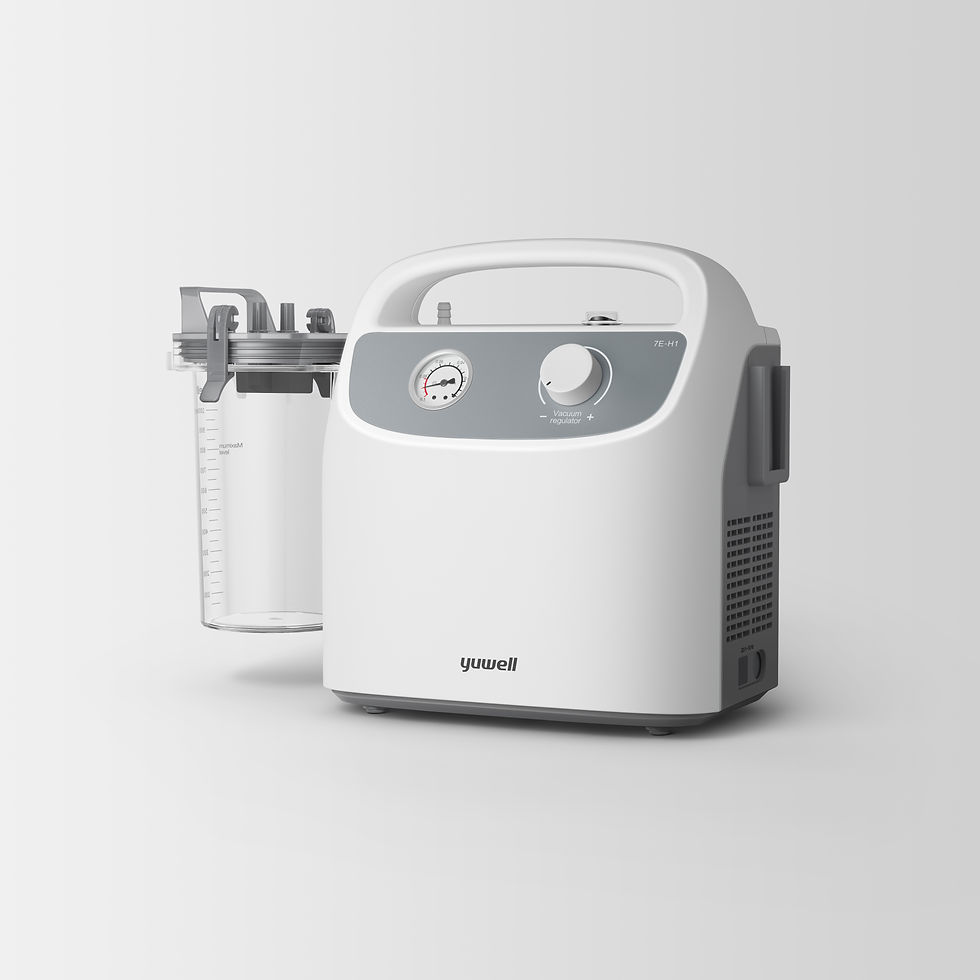

Portable Phlegm Suction Unit – 7E-H1
Model
7E-H1
Product Type
Portable phlegm suction unit
Power Type
AC mains-powered (no built-in battery)
Input Power
120 VA
Maximum Vacuum
85 ± 5 kPa
Maximum Airflow
28 ± 4 L/min (measured at device inlet)
Operating Noise
Approximately 60 dB(A) reference value
Liquid Collection Jar
1 × 1,000 mL, polycarbonate (PC)
Operating Cycle
30 minutes ON / 30 minutes OFF
Pump Type
Oil-free
Overflow Protection
Supported
Suction Liner Compatibility
Optional compatible liner system
Pressure Adjustment
Adjustable vacuum control
Q: What is the maximum airflow?
A: The brochure specifies 28 ± 4 L/min measured at the device inlet.
Q: Does the 7E-H1 include a rechargeable battery?
A: No. The 7E-H1 is an AC-powered unit.
Q: Can the suction system operate continuously?
A: No. The operating cycle is 30 minutes ON followed by 30 minutes OFF.
Q: Is a disposable suction liner system compatible?
A: Yes. A suitable optional liner system can be used according to the device instructions and the care setting.
